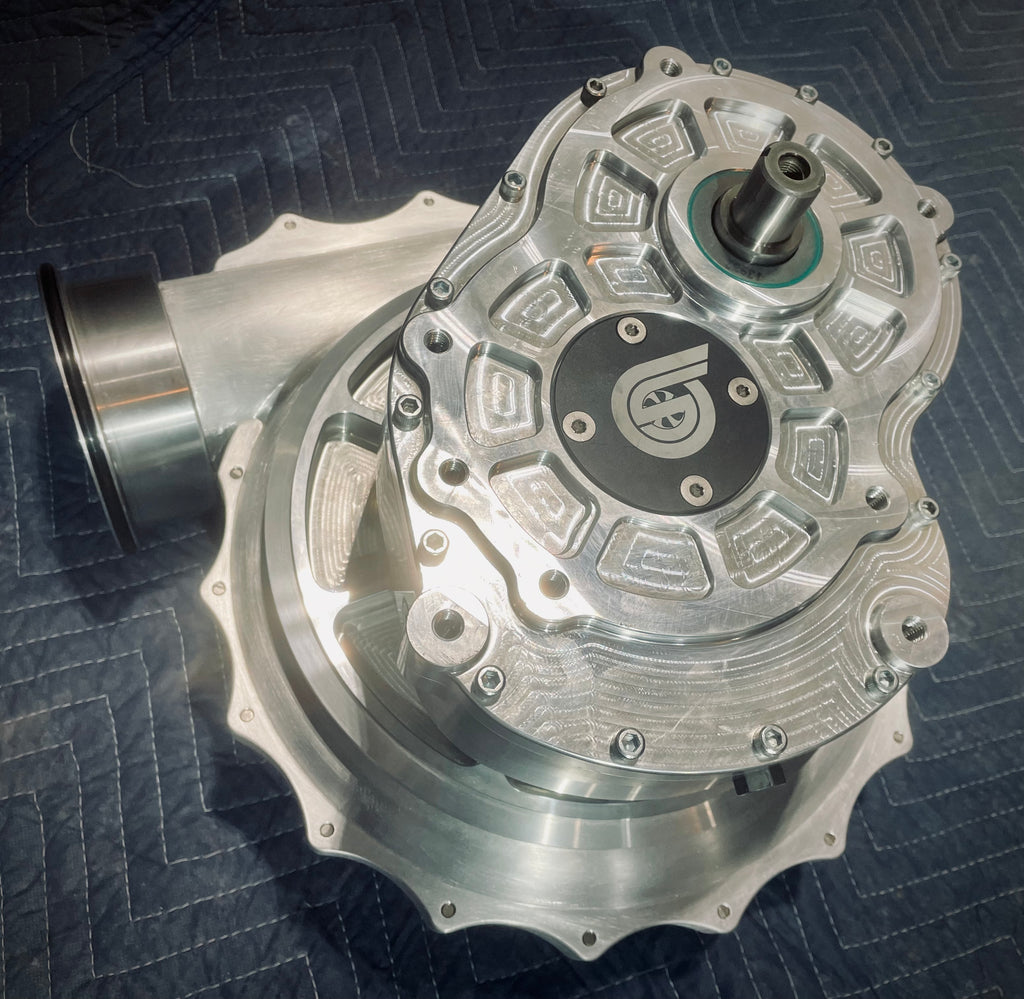

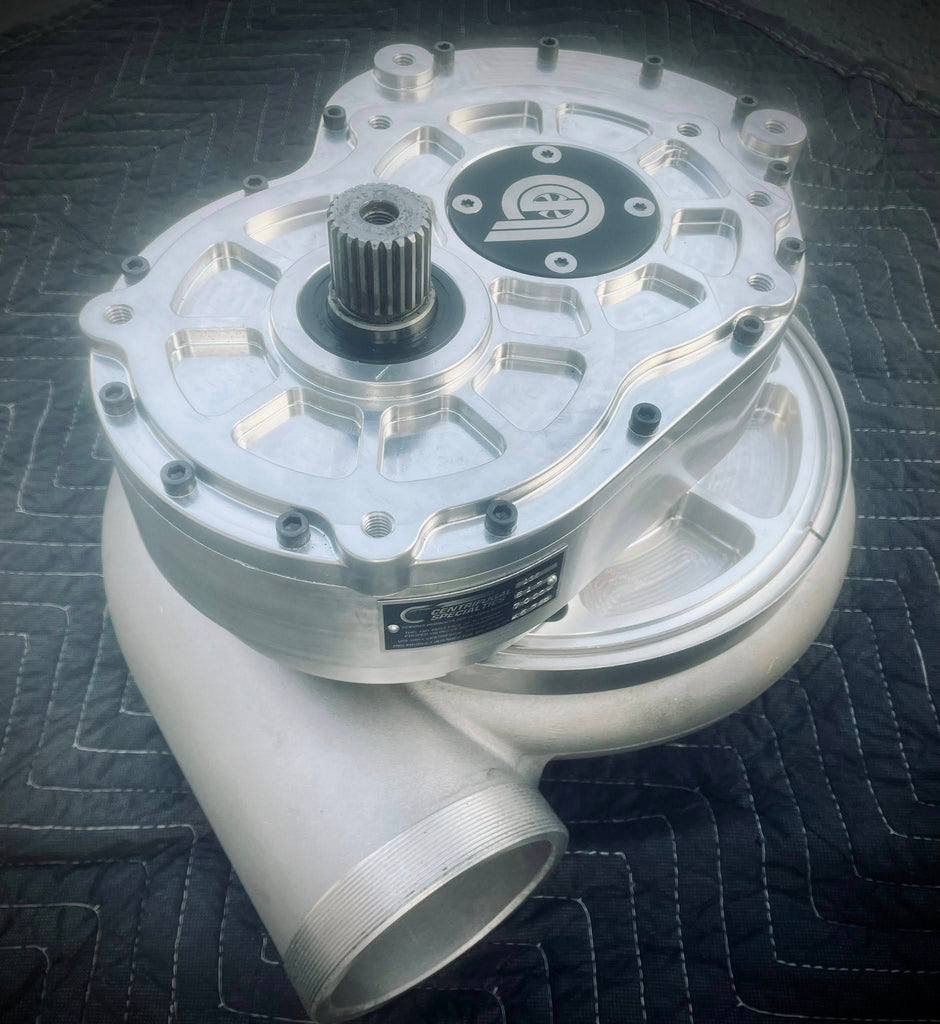

R132 Supercharger specifications:
- Supercharger inlet diameter - 136mm (132mm impeller tip-tip)
- Supercharger inlet hose/bellmouth pilot diameter - 5.85"
- Supercharger discharge connection - 5" dual seal
- Volute diameter - 13.5" cast, based on billet design
- Max Speed - 68,000 rpm
- Max Power: 2,600 hp
- Internal step-up ratio - 5.17:1
- V-band mounted compressor permits easy "re-clocking"
- self-contained - no connection to engine oiling system required
- 12oz oil capacity - improves oil longevity
- Patented transmission design provides enhanced bearing lubrication
- This design is well suited for Top Sportsman, Top Dragster and marine applications
- This supercharger features a less "peaky" compressor that builds boost quickly and favors engine sizes 540-632 cubic inches
