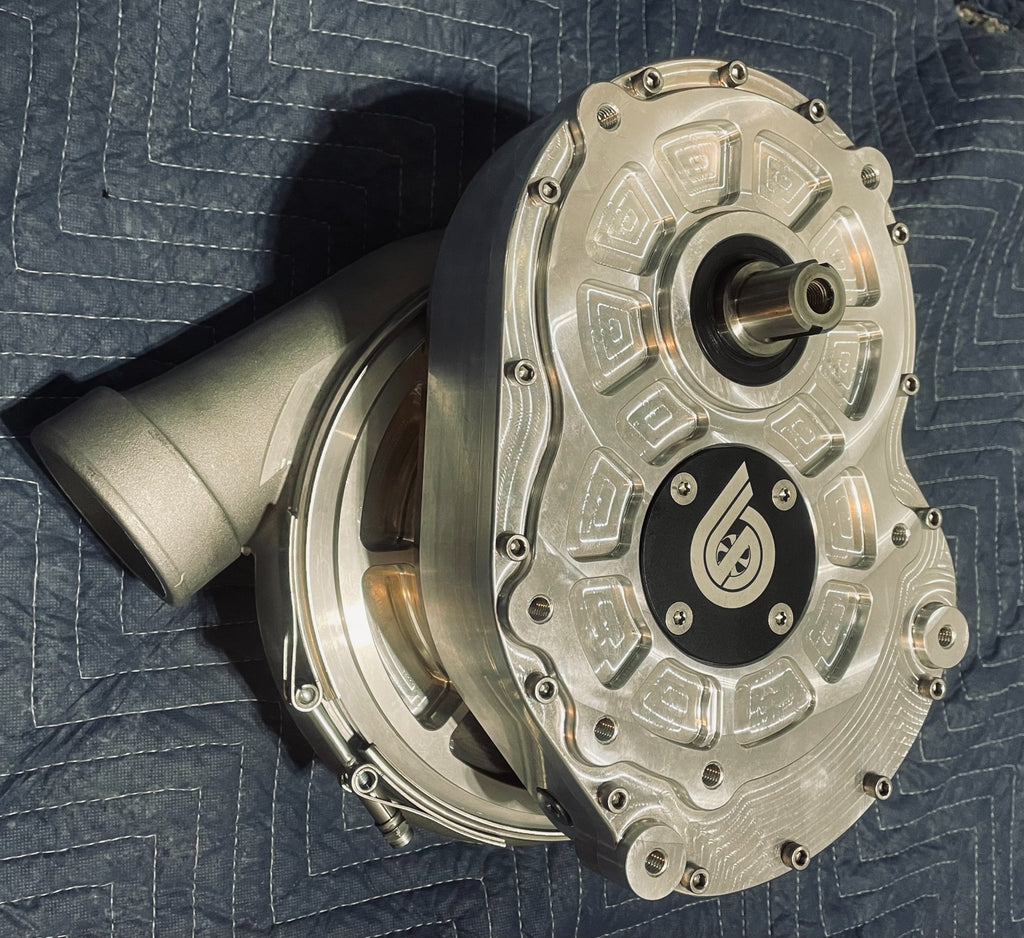

R103 Supercharger specifications:
- Supercharger inlet diameter - 106mm (103mm impeller tip-tip)
- Supercharger inlet hose/bellmouth pilot diameter - 4.80"
- Supercharger discharge hose diameter - 3.5"
- Volute diameter - 11"
- Max Speed - 72,000 rpm
- Max Power: 1,600+ hp
- Internal step-up ratio - 5.17:1
- V-band mounted compressor permits easy "re-clocking"
- self-contained - no connection to engine oiling system required
- 12oz oil capacity - improves oil longevity
- Patented, race-proven transmission design provides enhanced bearing lubrication and unmatched durability at this power level
- This compressor design is well suited for a broad variety of applications, including street/strip, fast bracket/index and heads up racing.
